The Arisaka M-Lok Offset Flashlight Scout Mount replaces the stock Picatinny rail adapter with a low profile M-Lok handguard mount, providing three lateral mounting positions for optimal light placement. The mount allows for a 45 degree angle, placing the light closer to the rail and out of the way of other accessories.
Features:
Replaces the stock Picatinny rail adapter with a low profile mount for M-Lok handguards.
low profile at less than 0.20" thick.
Includes necessary screws to attach light body to mount.
provides three lateral mounting positions for the light body, which allows the user to position the light closer or farther away from the top rail, front sights, or other accessories.

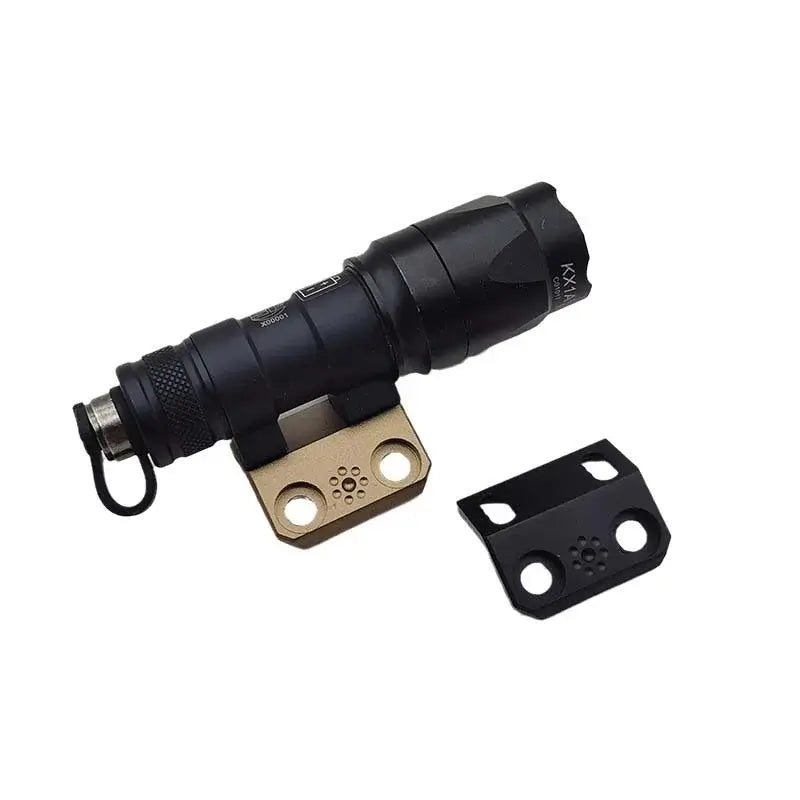

The Offset Scout Mount places the light at a 45 degree angle and tucks it in closer to the rail system. Oriented upwards, the light is located at approximately the 1:30 or 10:30 clock positions. Oriented downwards, the light is located at approximately the 4:30 or 6:30 clock positions.
Compatibility:
Modlite PLH, PLHv2 and OKW, Surefire M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V, Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), Olight Odin, CD REIN, and Arisaka 300, 600 and 18650 Series.
Specifications:
Material: aluminium alloy metal.
Color: black / tan.

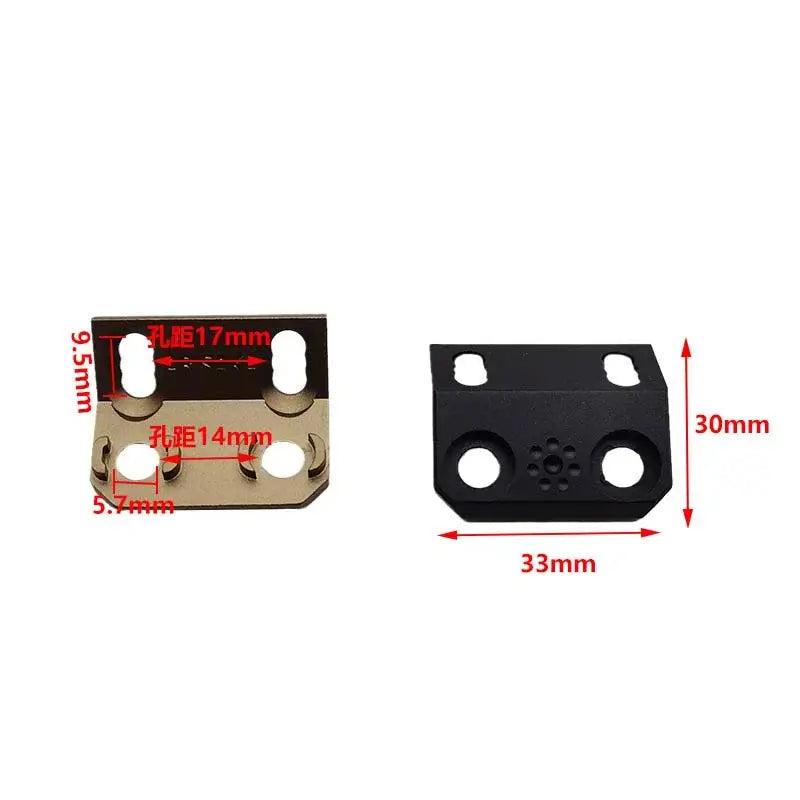

Size: 33*30mm.
System: m-lok handguard.
Weight: 12g.

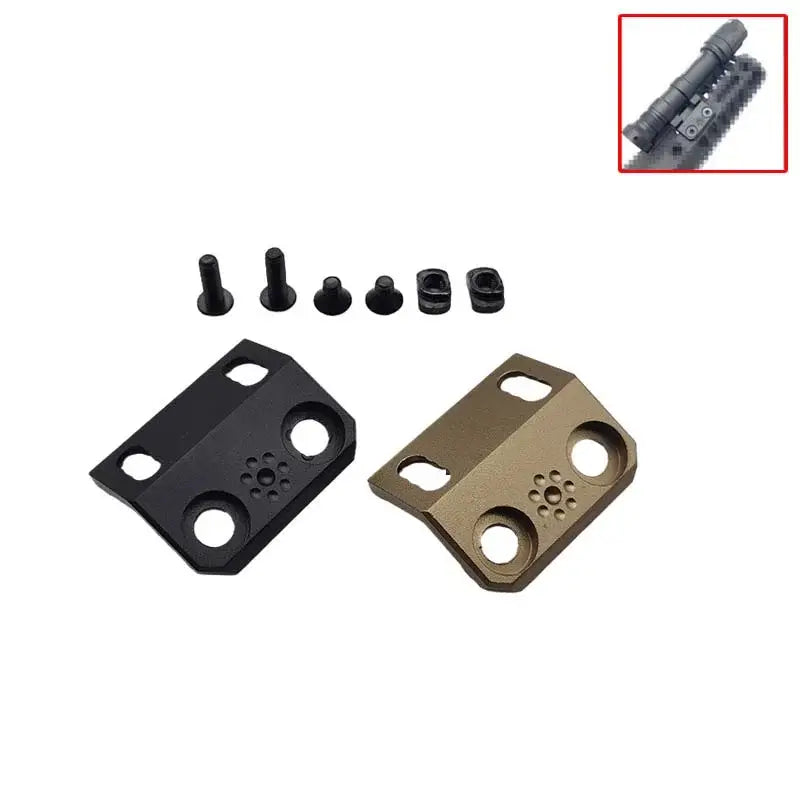

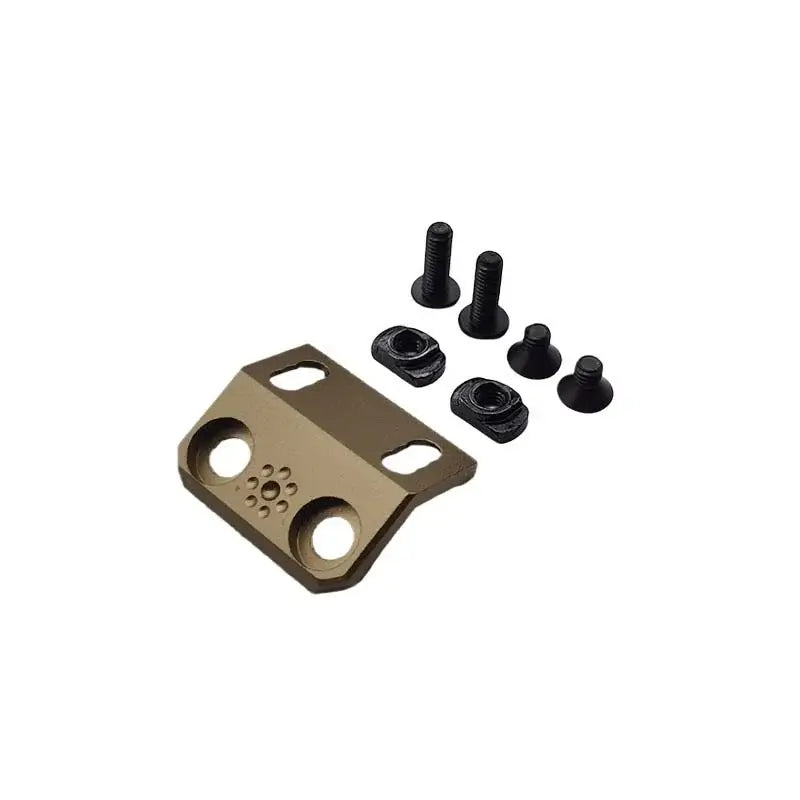

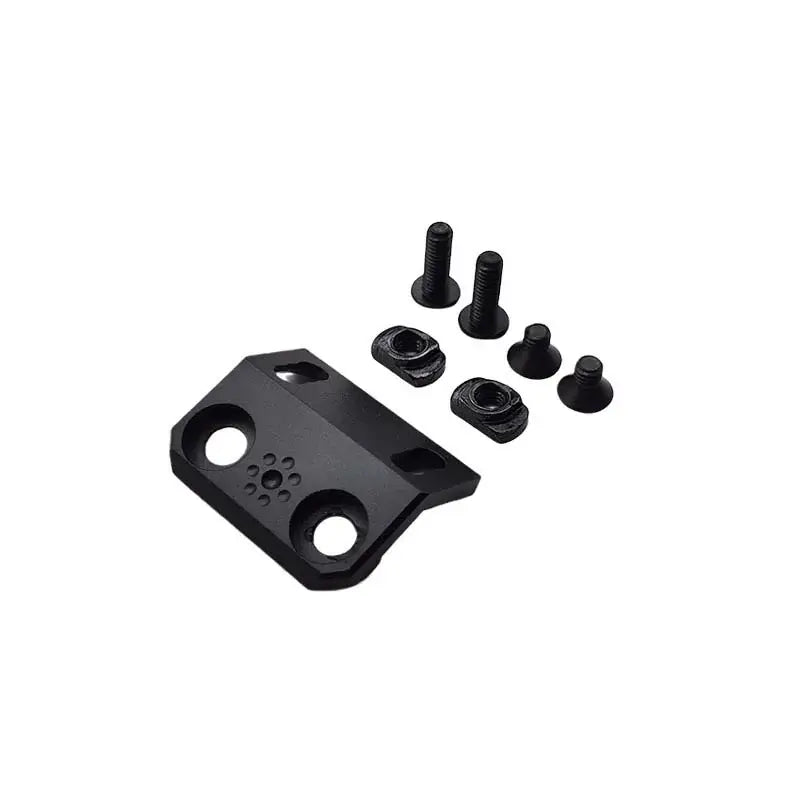

Package includes: One arisake offset scount mount, Two M-Lok nuts, two 10-24x5/16" Torx button head screws, two 8-32x3/8" Torx flat head screws.
